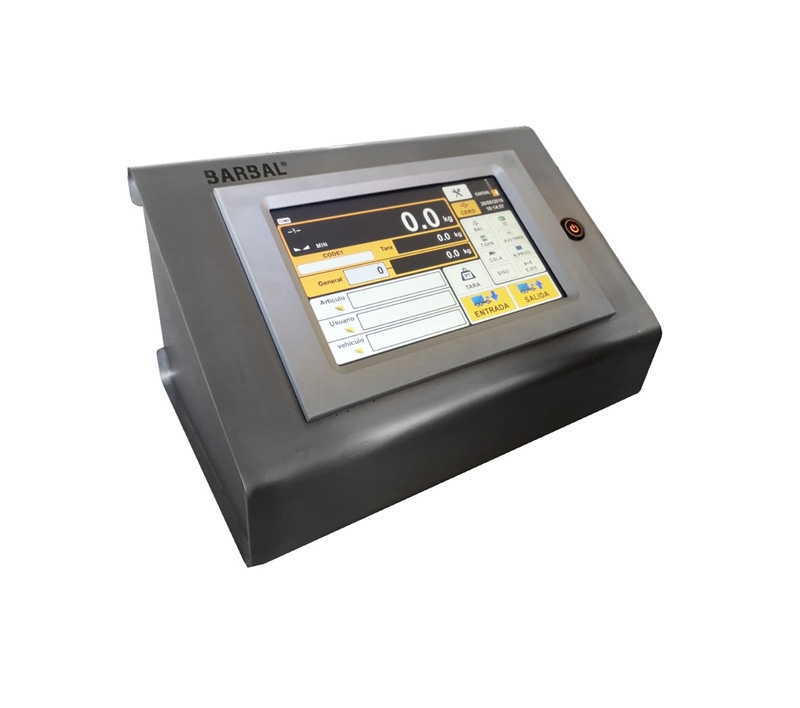

7 "TFT color touch screen controller/reader for industrial and metrological applications
Powerful 32-bit processor with optimization based on Linux operating system.
Designed for analog cells and digital cells (RS485).
The compact size allows it to be supplied in housing or recessed versions.
Standard ports:
With software option:
HARDWARE
ADDITIONAL
Stainless steel housing IP69K

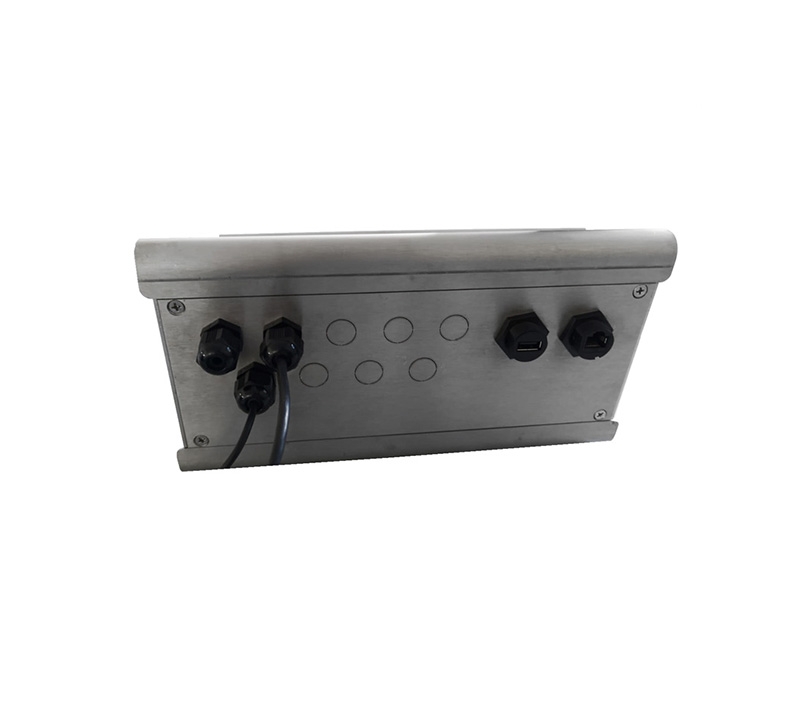

Suitable for harsh environment weighing locations. With mounting brackets for desk-top or wall-mount installation. Integrated power supply unit, sealed cable glands for connections.
Universal Use
Suitable for difficult environmental conditions and locations with high hygienic standards, as in the food, pharmaceutical and chemical industry.
High Operational Security
Fast and error-free operation is ensured by a color display for the indication of weight, IDs and operator prompts.
Weighing Electronics
W7 connects to one scale with analog strain gauge load cells, entry impedance 43 Ohm–3.3 kOhm (e. g. suitable for 8 x 350 Ohm load cells), or via zener barriers, entry impedance 87.5 Ohm–3.3 kOhm (e. g. suitable for 4 x 350 Ohm load cells), or digital load cells. The weighing terminal provides a W&M approved resolution of up to 10,000 d. Calibration is possible as single or multiple-range (e. g. 3 x 3,000 d) and as single or multi-interval scale.
Weighing Program
Display of net, tare and gross weight. Operator prompting for capturing of weight or piece count. Totalizing is also possible. Plug-on modules are used to set up the W7 for applications of varying complexity.
Data Logging
Via optional printer interface. The print layout for labels or forms is configurable. Printout of weights, totals, date, time and consecutive-no.
Certified according to OIML R76 and EN 45501
Electromagnetic sensitivity 10V/m
Number of divisions 10.000 e (class III)
Min. tension for verification scale 0.6uV/e
Max. tension of signal for dead weight 10mV
Medium voltage from 5mV up to 15mV
Power to the cell at 5V
Operating temperature from -10ºC up to +40ºC
Microprocessor of 32 bits
Analog/digital converter of 24 bits (1.000.000 internal divisions)
Real time clock
Communication port RS232
Second communication port RS 232 or TS485

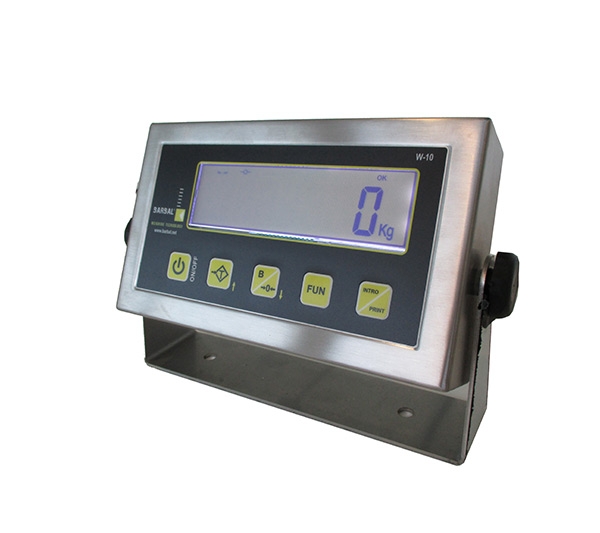

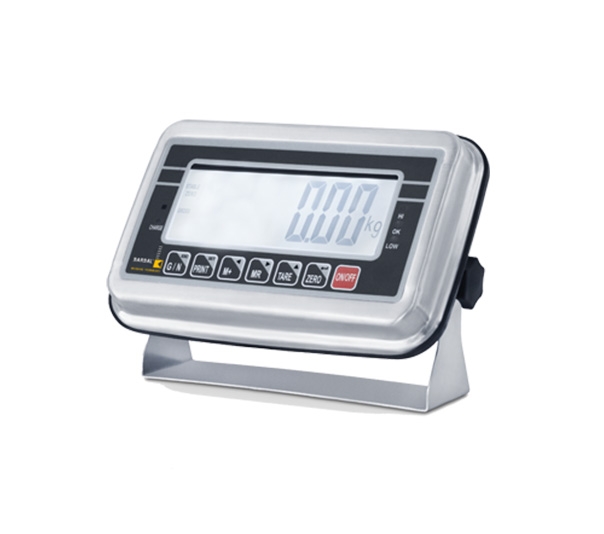

Weighing terminal, stainless steel, specially adapted for hostile environments, with strong presence of humidity, allowing water jets from any direction in the IP65 version. Recommended for food and chemical industries.
Ensures perfect legibility, due to high quality backlit display of 52mm.
The simplicity of use, high reliability, coupled with excellent benefits and the presence of a serial interface for the connection to a computer or printer makes this terminal a first choice for simple weighing solutions.
Its standard version is equipped with a practical support that enables its use on a desktop or to be mounted on a wall.
Designed for maximum ease of dialogue with the operator, due to a backlit LCD display which is extremely easy to use, making it suitable for several conditions of use.
This is a weighing terminal with a high versatility of applications, allowing a high number of functions and expansion possibilities.
Allows its integration with PC's, PLC's, printers and automation systems.
With EC approval of the type in conformity with Directive 90/384 CEE.

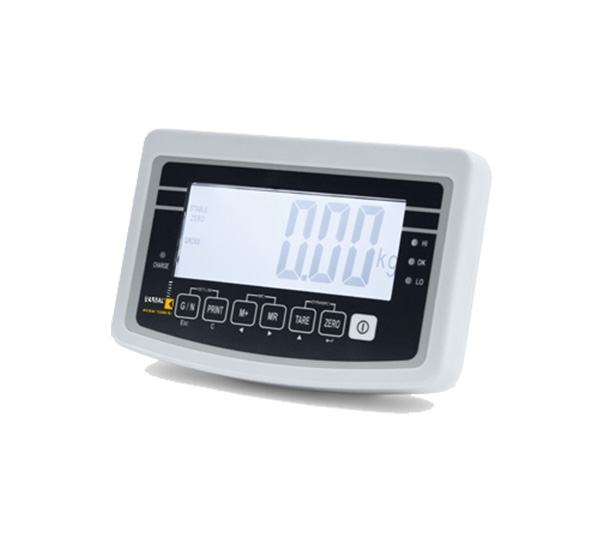

Weighing terminal with perfect legibility, due to high quality backlit display of 52mm.
The simplicity of use, high reliability, coupled with excellent benefits and the presence of a serial interface for the connection to a computer or printer makes this terminal a first choice for simple weighing solutions.
Designed for maximum ease of dialogue with the operator, due to a backlit LCD display which is extremely easy to use, making it suitable for several conditions of use.
This is a weighing terminal with a high versatility of applications, allowing a high number of functions and expansion possibilities.
With EC approval of the type in conformity with Directive 90/384 CEE.

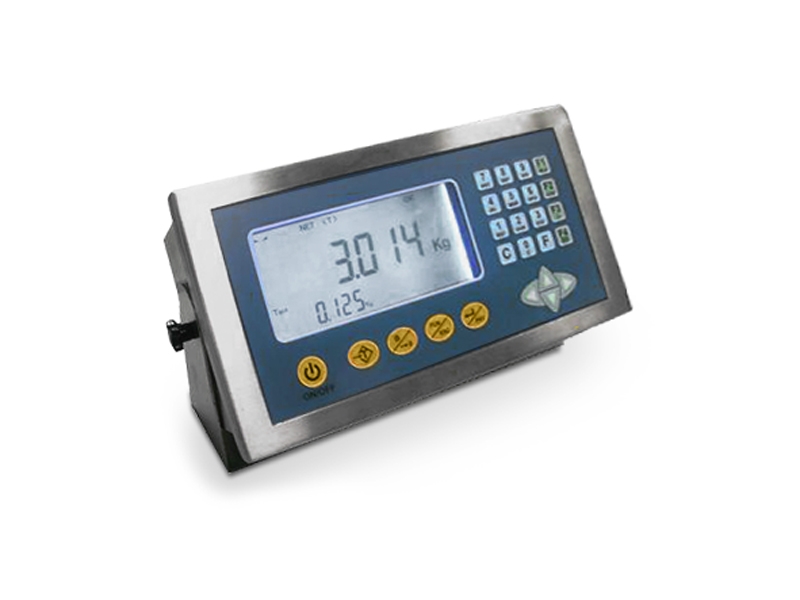

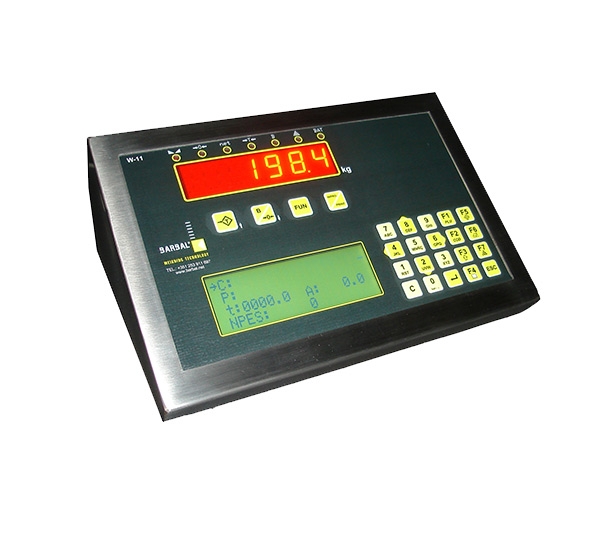

High precision electronic indicator with software optimised for all programme options included.
LCD screen, backlit with 3 large numeric fields, alphanumeric keyboard with cursors, accumulation and auto accumulation of weighings, On / Off button.
Manual tare weight function through numerical keypad, part counting function, function dedicated to dynamic weighing and weighing of animals, unloading function to GROSS-NET TARA labels.
With Clock / Calendar and PS/2 output for standard PC keyboard. Manufactured entirely in stainless steel.
With EC approval of the type in conformity with Directive 90/384 CEE, in the Mono Range or Multi Range versions.

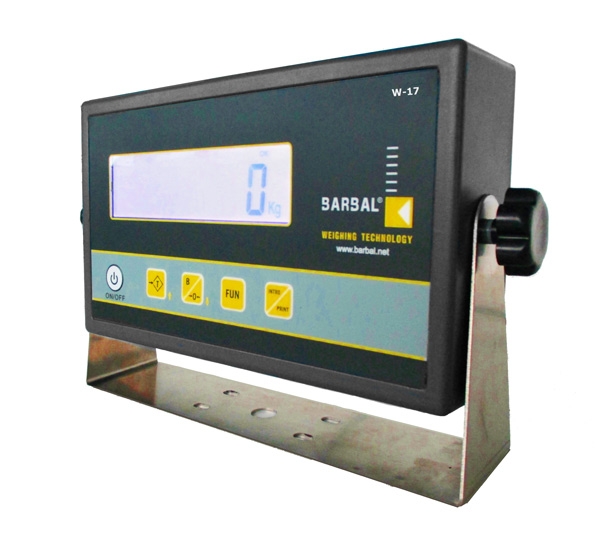

High precision electronic indicator, provide for the accumulation of weights and aggregation in the indicator or printer.
Ensures perfect legibility, due to high quality backlit display.
The simplicity of use, high reliability, coupled with excellent benefits and the presence of a serial interface for the connection to a computer or printer makes this terminal a first choice for simple weighing solutions.
Its standard version is equipped with a practical support that enables its use on a desktop or to be mounted on a wall.
Designed for maximum ease of dialogue with the operator, due to a backlit LCD display which is extremely easy to use, making it suitable for several conditions of use.
Also has the unique feature of allowing a connection to two weighing platforms.
This is a weighing terminal with a high versatility of applications, allowing a high number of functions and expansion possibilities.
Allows its integration with PC's, PLC's, printers and automation systems.
With EC approval of the type in conformity with Directive 90/384 CEE, in the Mono Range or Multi Range versions.

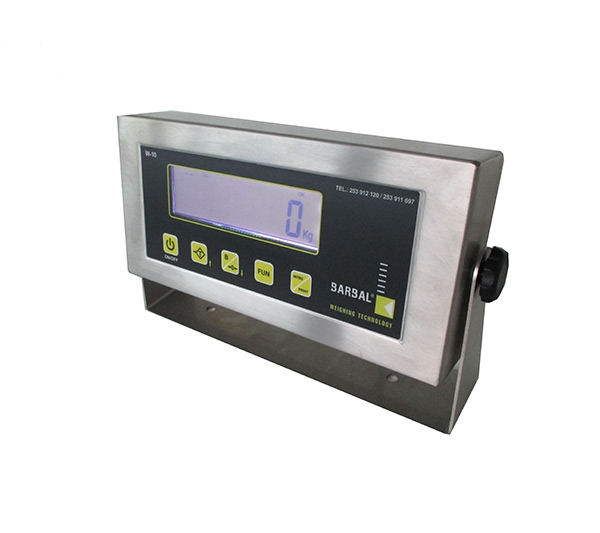

Weighing terminal, stainless steel, specially adapted for hostile environments, with strong presence of humidity, allowing water jets from any direction in the IP65 version. Recommended for food and chemical industries.
Ensures perfect legibility, due to high quality backlit display.
The simplicity of use, high reliability, coupled with excellent benefits and the presence of a serial interface for the connection to a computer or printer makes this terminal a first choice for simple weighing solutions.
Its standard version is equipped with a practical support that enables its use on a desktop or to be mounted on a wall.
Designed for maximum ease of dialogue with the operator, due to a backlit LCD display which is extremely easy to use, making it suitable for several conditions of use.
Also has the unique feature of allowing a connection to two weighing platforms.
This is a weighing terminal with a high versatility of applications, allowing a high number of functions and expansion possibilities.
Allows its integration with PC's, PLC's, printers and automation systems.
With EC approval of the type in conformity with Directive 90/384 CEE, in the Mono Range or Multi Range versions.
